The problem
An industrial cobot arm is precise and completely literal. It goes where you tell it, in the coordinates you give it, and it has no idea what a red bottle is or where one might be.
This project gave an Addverb Syncro 5 two ways to be told — one where you say what you want in plain English and the arm works the rest out, and one where you simply move your hand.
Two control paradigms

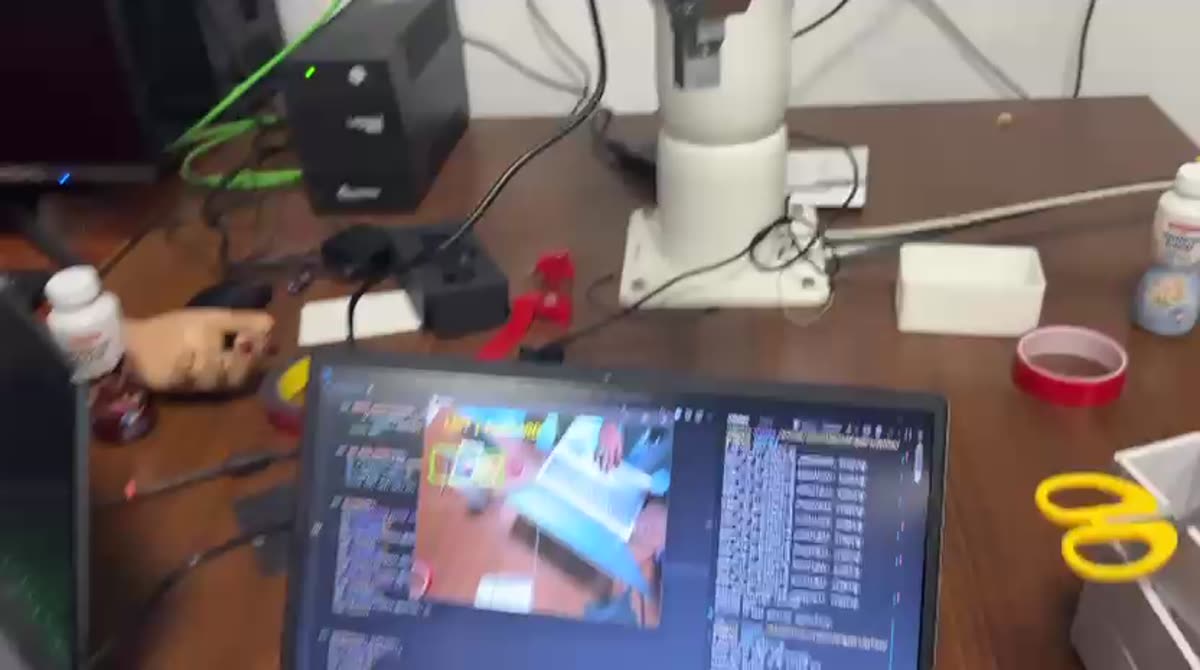

Autonomous retrieval. An operator types or says something like “pick up the red bottle.”
- Llama 3 on Groq extracts the target object class and any directional hint from the sentence.
- A YOLO26e model is configured to track only that class.
- The base joint sweeps in a search pattern while the camera feed is analysed for detections above threshold.
- Once found, pixel-space error
dx = x_object − x_frame_centredrives a PID-like control law issuingjogCartesianRelativecommands — closed-loop visual servoing that keeps the target centred in frame. - The RealSense depth stream is queried at the object centroid, and the approach only triggers once the target is inside a safe grasp envelope.
- The arm descends, the gripper closes, and it retracts home.
No further human input after the sentence.

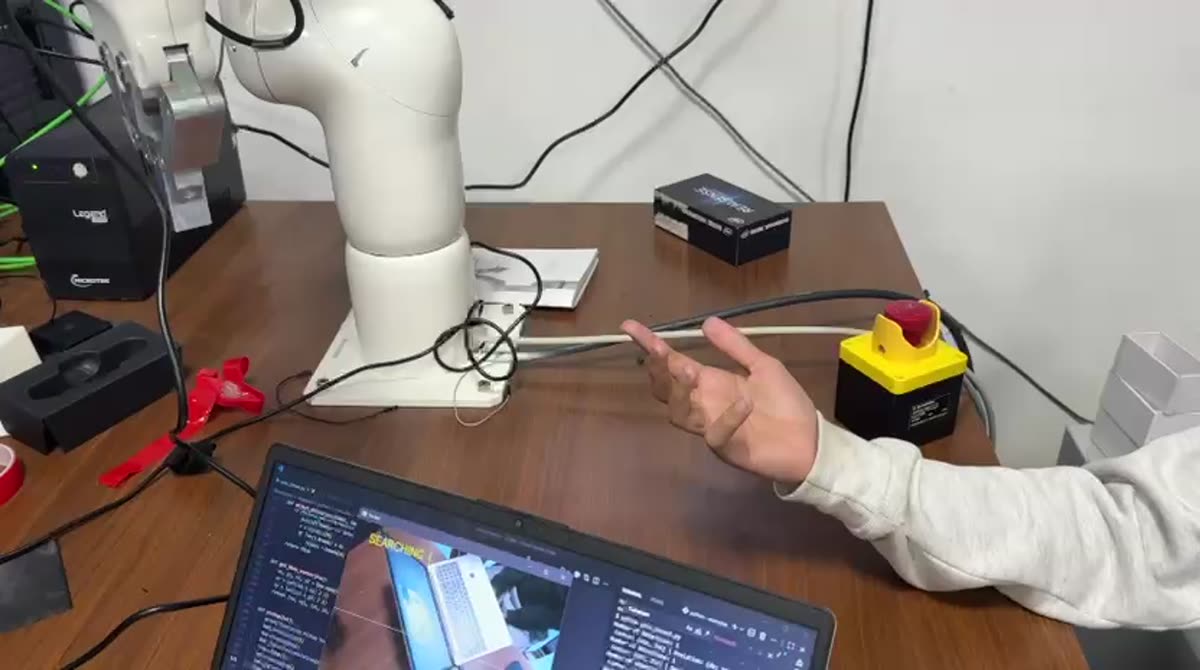

Glove teleoperation. An ESP32 sensor glove with finger-bend and thumb-pressure flex sensors publishes over MQTT at ~20 Hz. A Hoeffding Tree classifier, trained online, maps a sliding window of statistical features to one of seven gestures — neutral, forward, backward, left, right, up, down — which become Cartesian jog commands on the tool frame.
The engineering decision worth explaining
The transport layer is a custom ASCII-over-TCP protocol on port 5000, and it deliberately bypasses ROS middleware for production control.
That sounds like heresy in a robotics project, and it’s the right call: the visual servoing loop has to react at camera frame rate — roughly 30 fps, about 33 ms a frame — and ROS message passing introduces latency and jitter the loop can’t absorb. Direct TCP packets dispatch in sub-milliseconds.

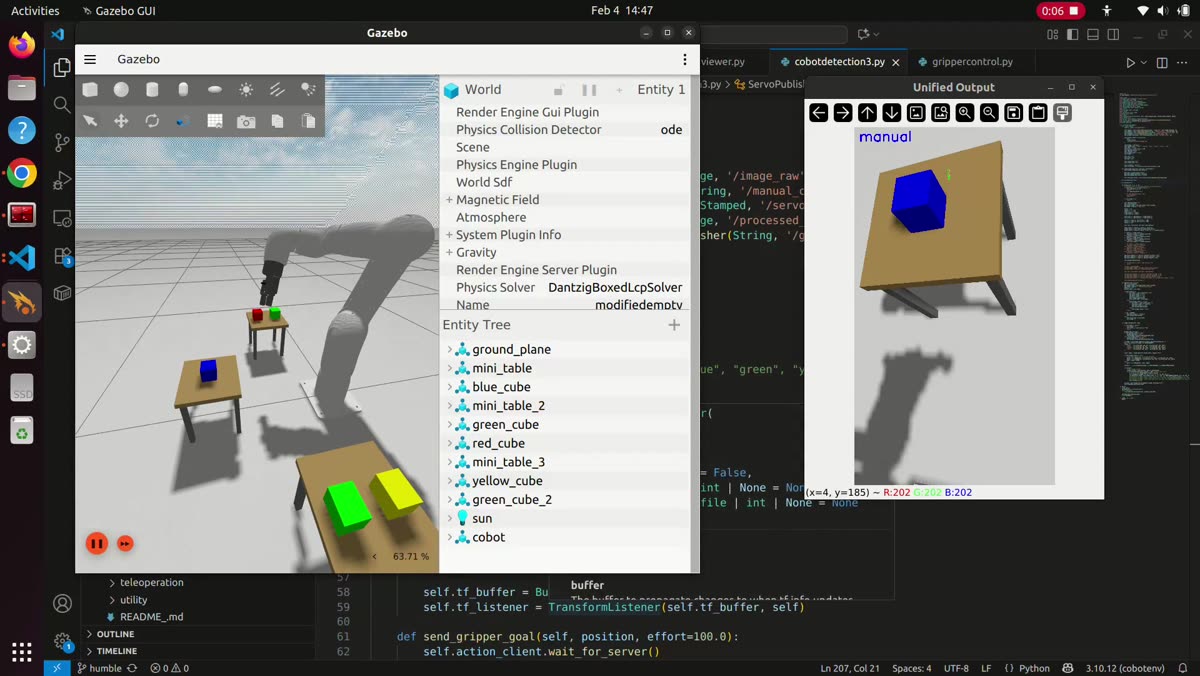

ROS 2 and Gazebo still exist in the system, running a parallel simulation environment. They just aren’t in the path when the arm is actually moving.
The backend
A C++17 server runs on the cobot’s own embedded controller inside a Docker container, bridging the ASCII protocol to Addverb’s real-time motor APIs over EtherCAT (SOEM).
It is dual-threaded. A network thread parses commands byte by byte into shared state behind a
mutex; a control thread runs doControl() on a ~50 ms loop, gated by an atomic flag so it can be
paused safely during controller switches and gripper operations.
Three controller modes swap dynamically depending on the command: joint jogging, Cartesian axis jogging, and linear velocity moves. Relative Cartesian commands are rotation-aware — a full 3×3 matrix is built from the end-effector’s current roll-pitch-yaw so that “left” means left relative to the tool, whatever orientation the arm happens to be in.
Where it went
Featured on Addverb Technologies’ official blog.
Built by a team of eight: Satyam Ashtikar, Yash Bhamare, Hrishab Mittal, Keshav N., Dhananjay Dhumal, Sinam J., Varad Pendse, and Atharva Chavan.
